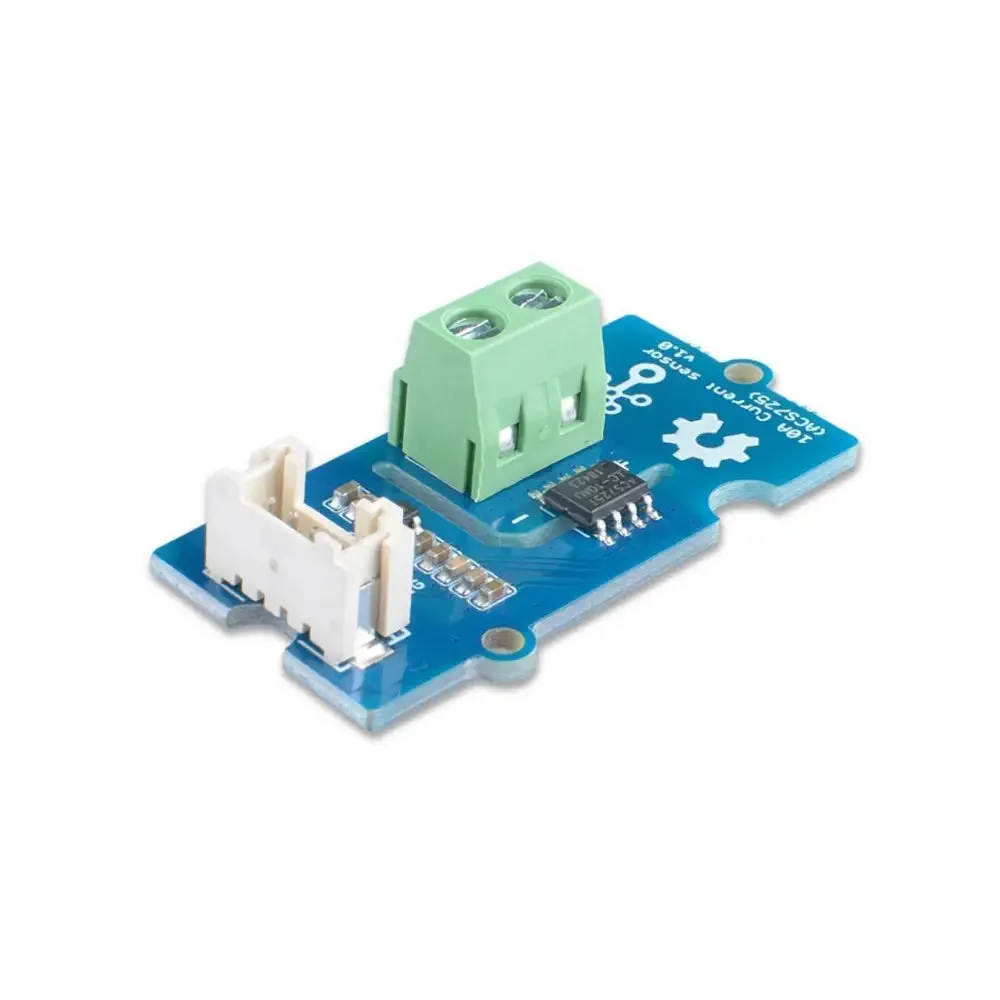

• Grove 10A DC Current Sensor
• Has a high-bandwidth 120 kHz analog output
• Offers 1.2 mΩ primary conductor resistance
• Differential Hall sensing rejects common-mode fields

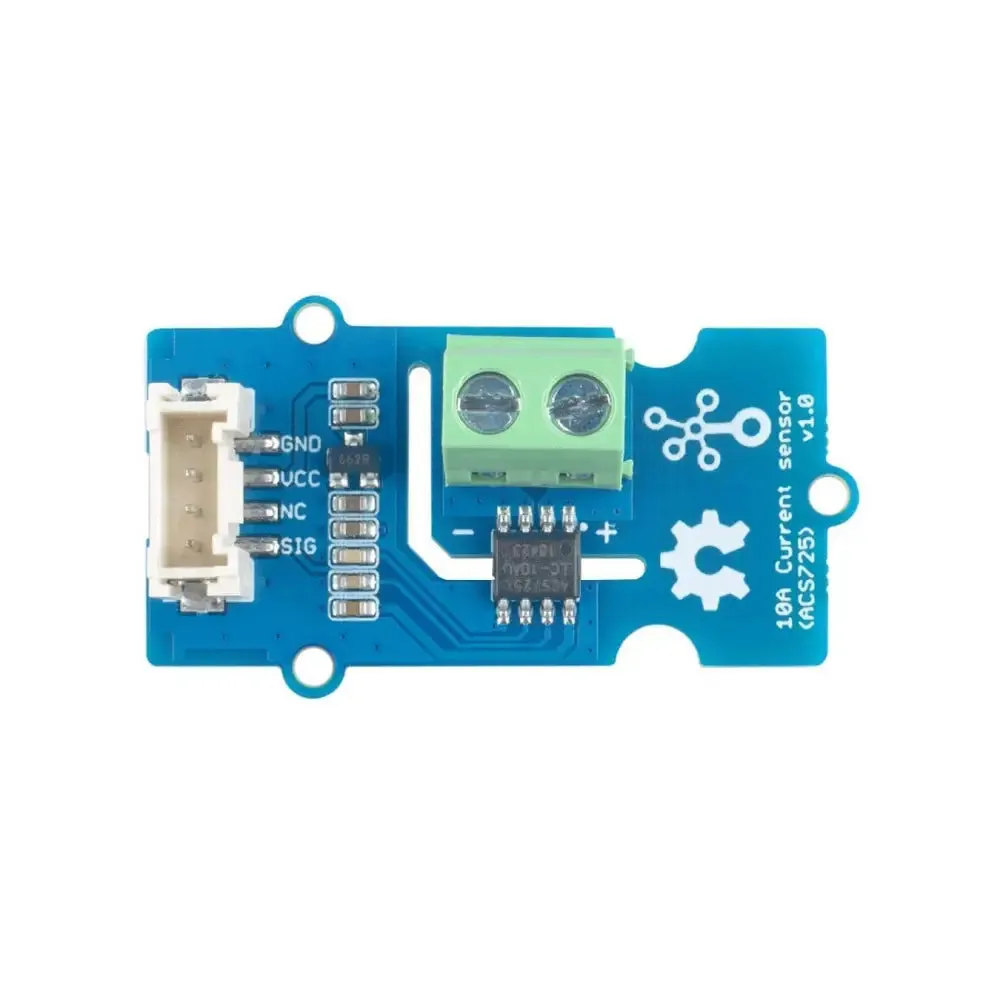

The Grove 10A DC Current Sensor is a high precision DC current sensor based on ACS725. The Allegro™ ACS725 current sensor IC is an economical and precise solution DC current sensing in industrial, automotive, commercial, and communications systems.

The Grove - 10A DC Current Sensor (ACS725) can measure the DC current up to 10A and has a base sensitivity of 264mV/A. This sensor does not support AC current.
