Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Rectangular |
| Cable Length | 2 m |
| Connection Type | Cable 2-Wire |
| Frequency, Switching | 0.5 kHz |
| Housing Material | ABS |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | Bracket/DIN Rail Non-Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Unshielded |
| Supply Voltage | 12-24 VDC |
Overview

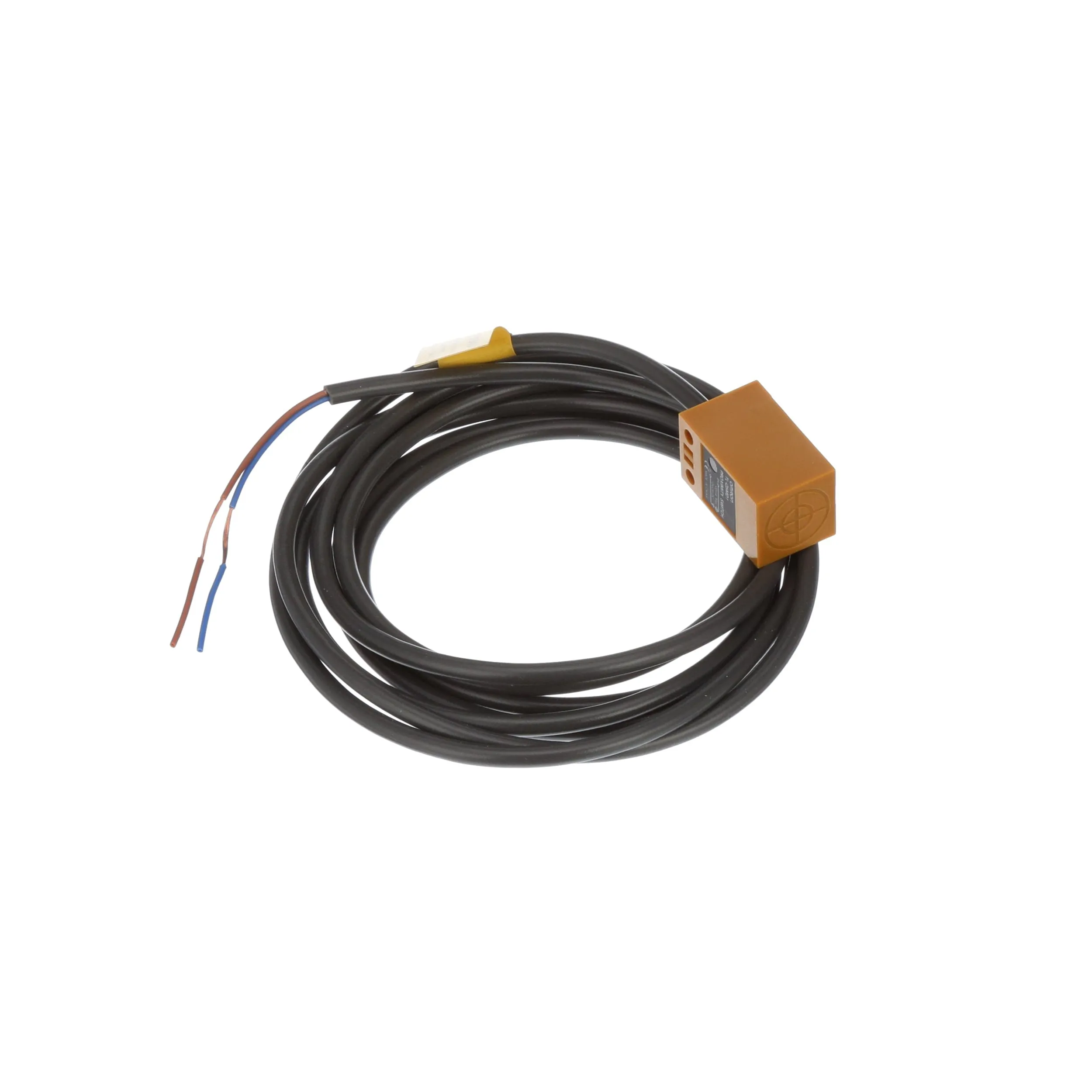

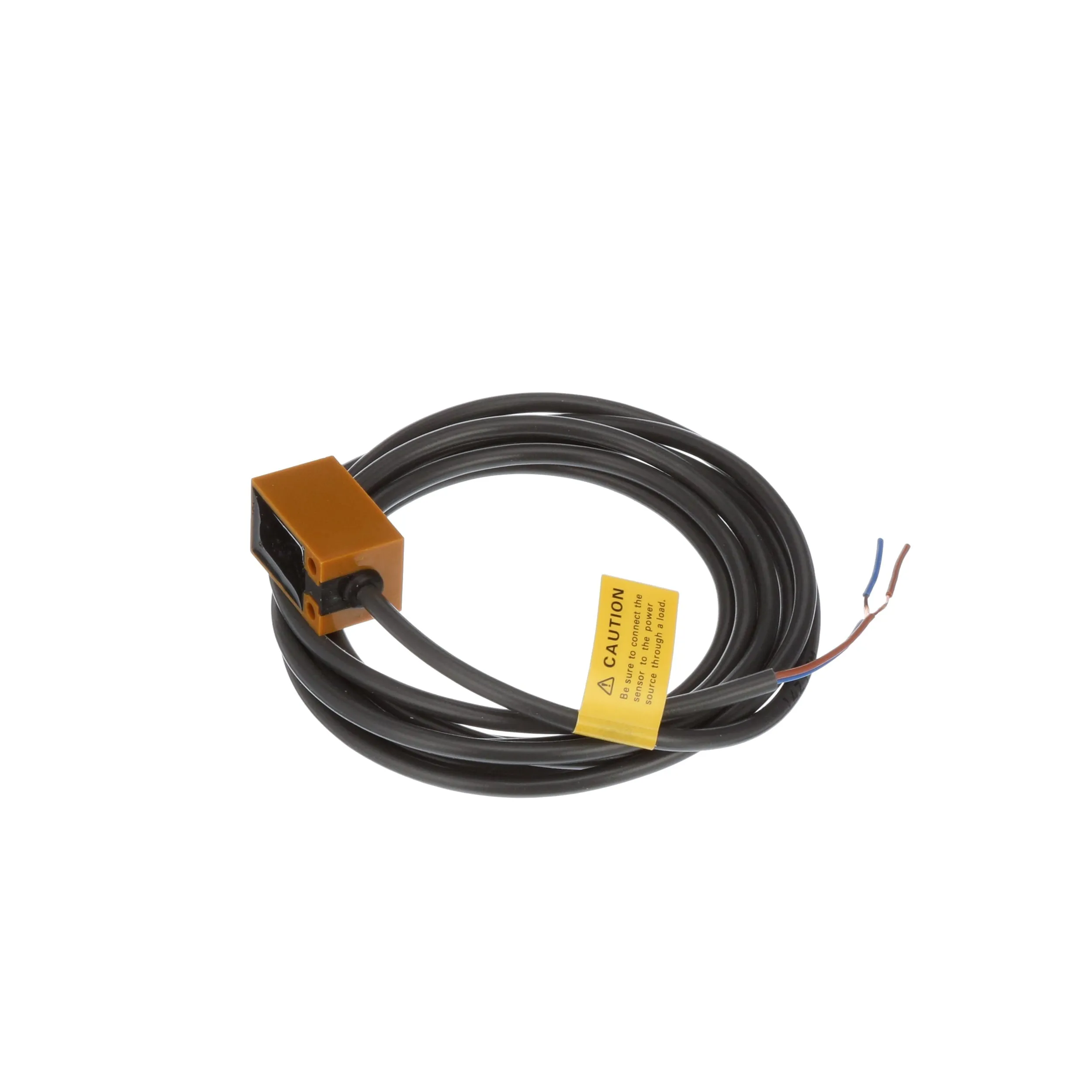

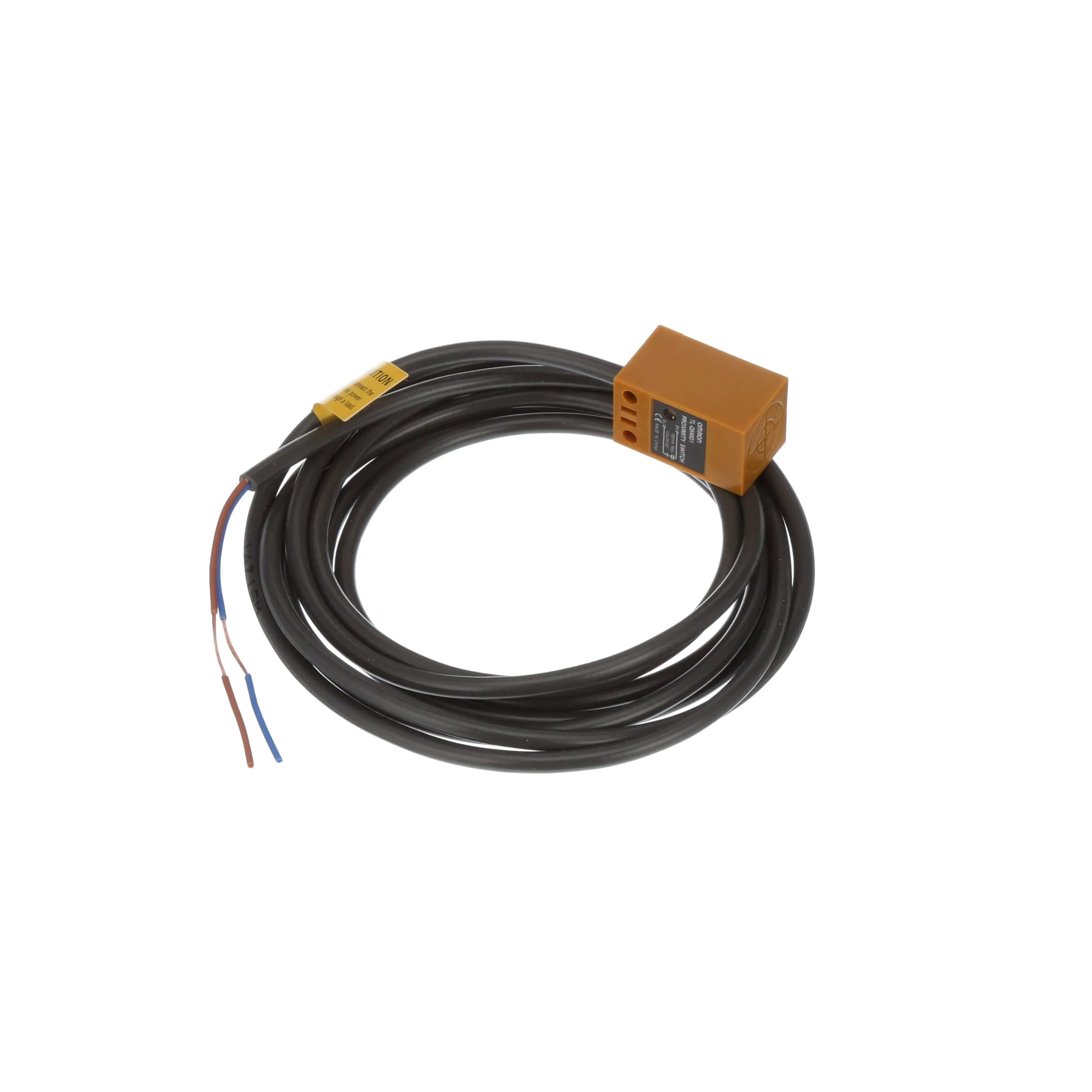

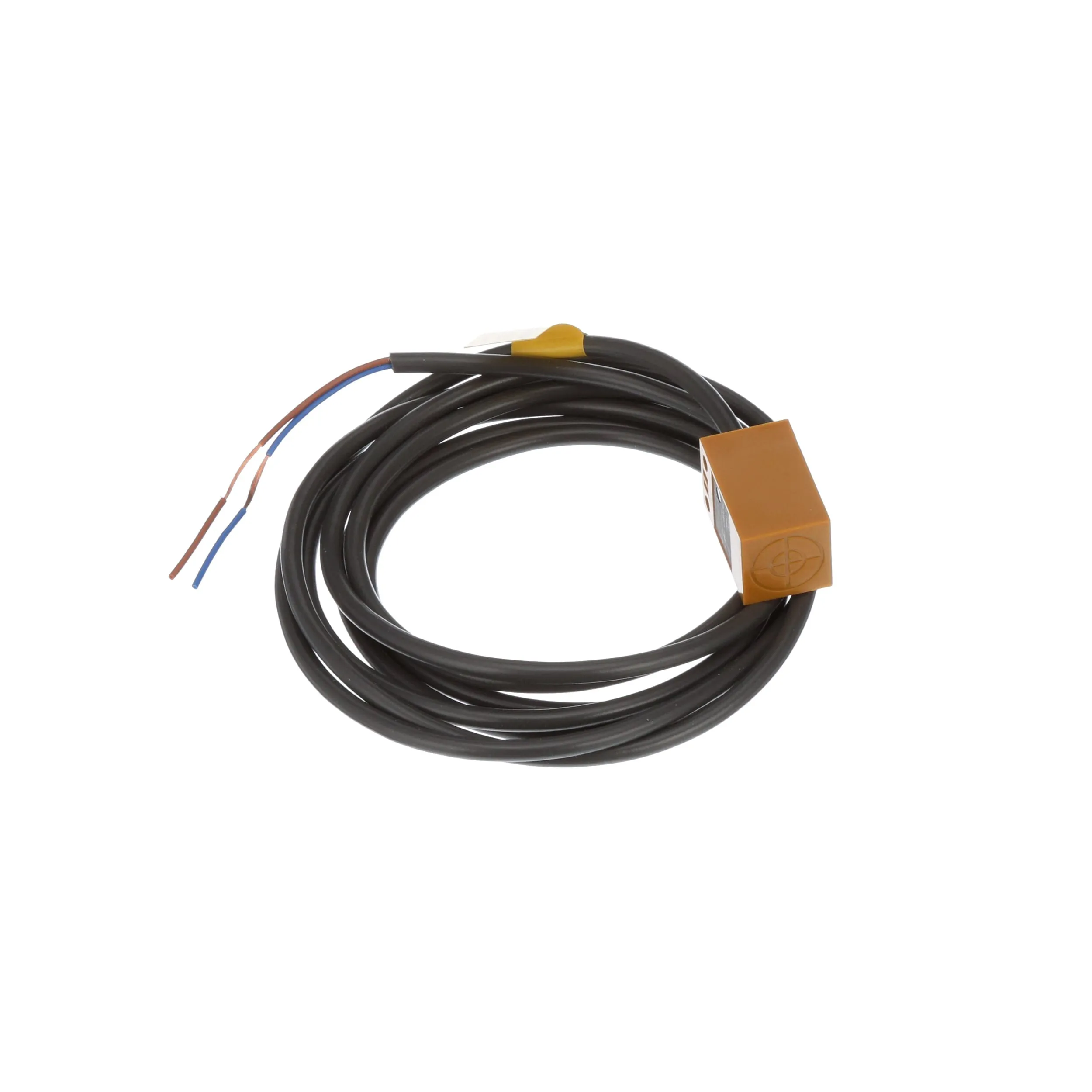

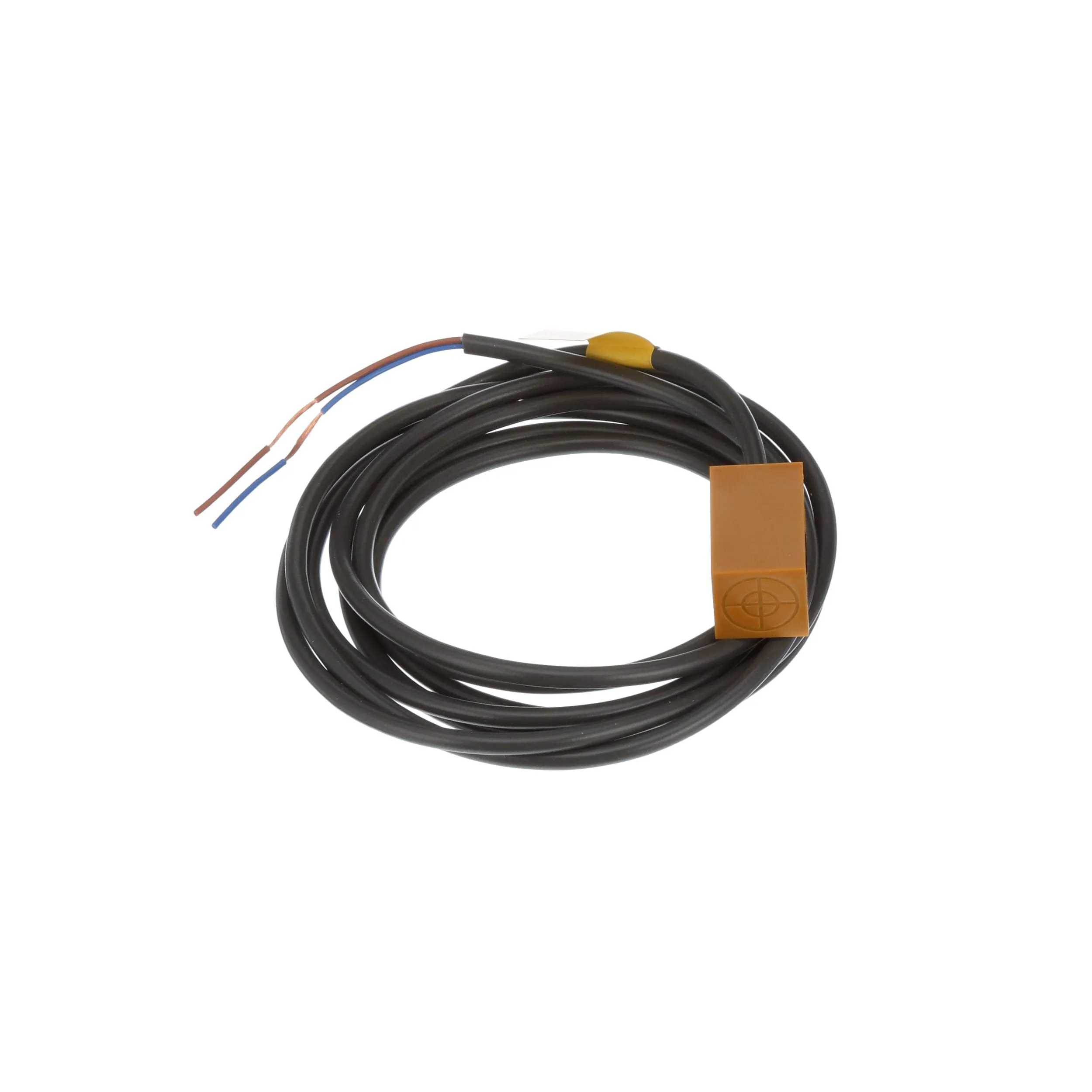

TL-N & TL-Q Standard Inductive Sensors
The TL-N and TL-Q series of inductive proximity sensor models are ideal for limit control, counting control, and other applications
