Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-404-RS |
| Connection Type | Wire Leads |
| Insulation Material | Fiberglass |
| Jacket Material | Stainless Steel |
| Length, Wire | 6.56 ft (2m) |
| Maximum Operating Temperature | 662 F (350 C) |
| Minimum Operating Temperature | -76 F (-60 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056112124924 |
| Warranty | 3 Year Warranty |
Overview

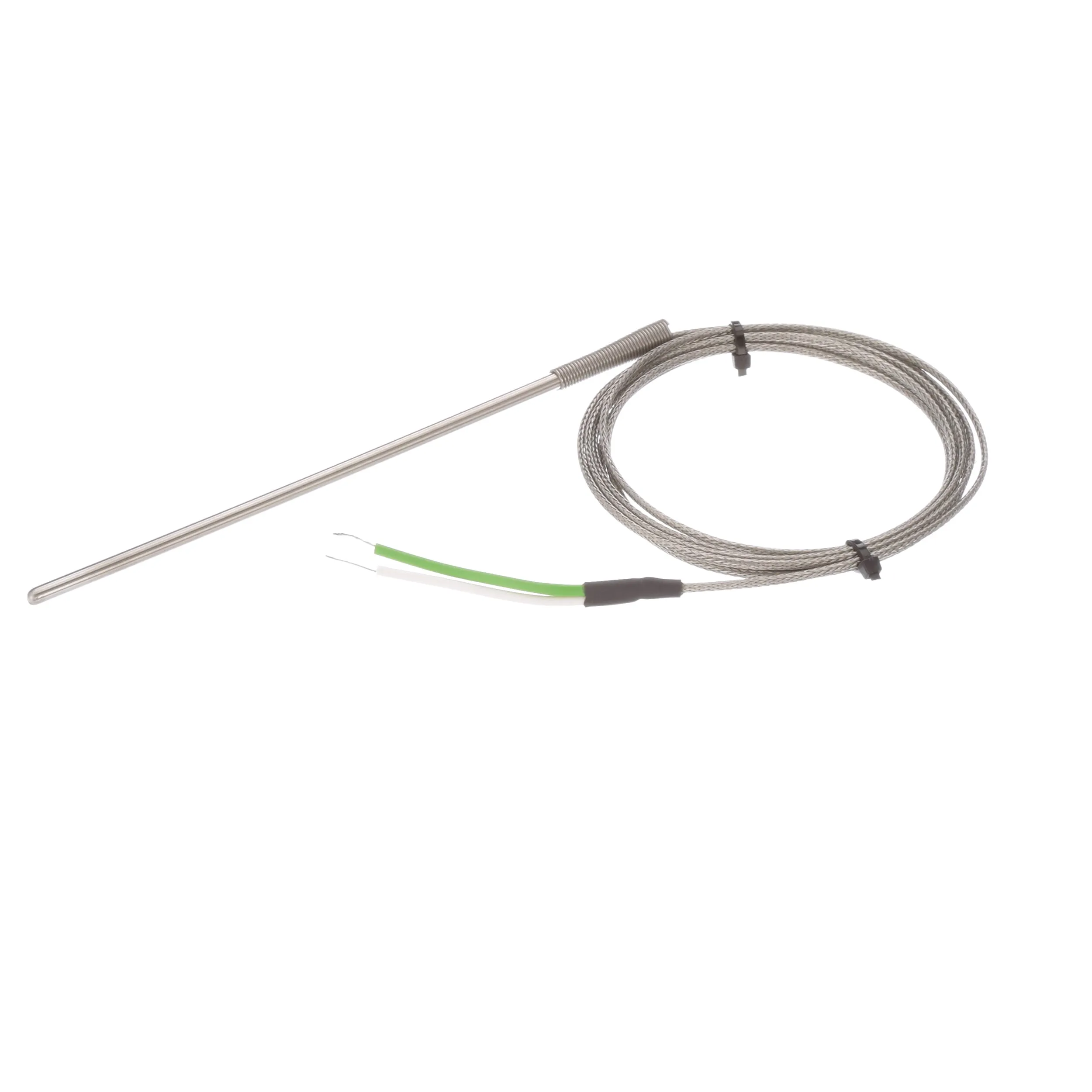

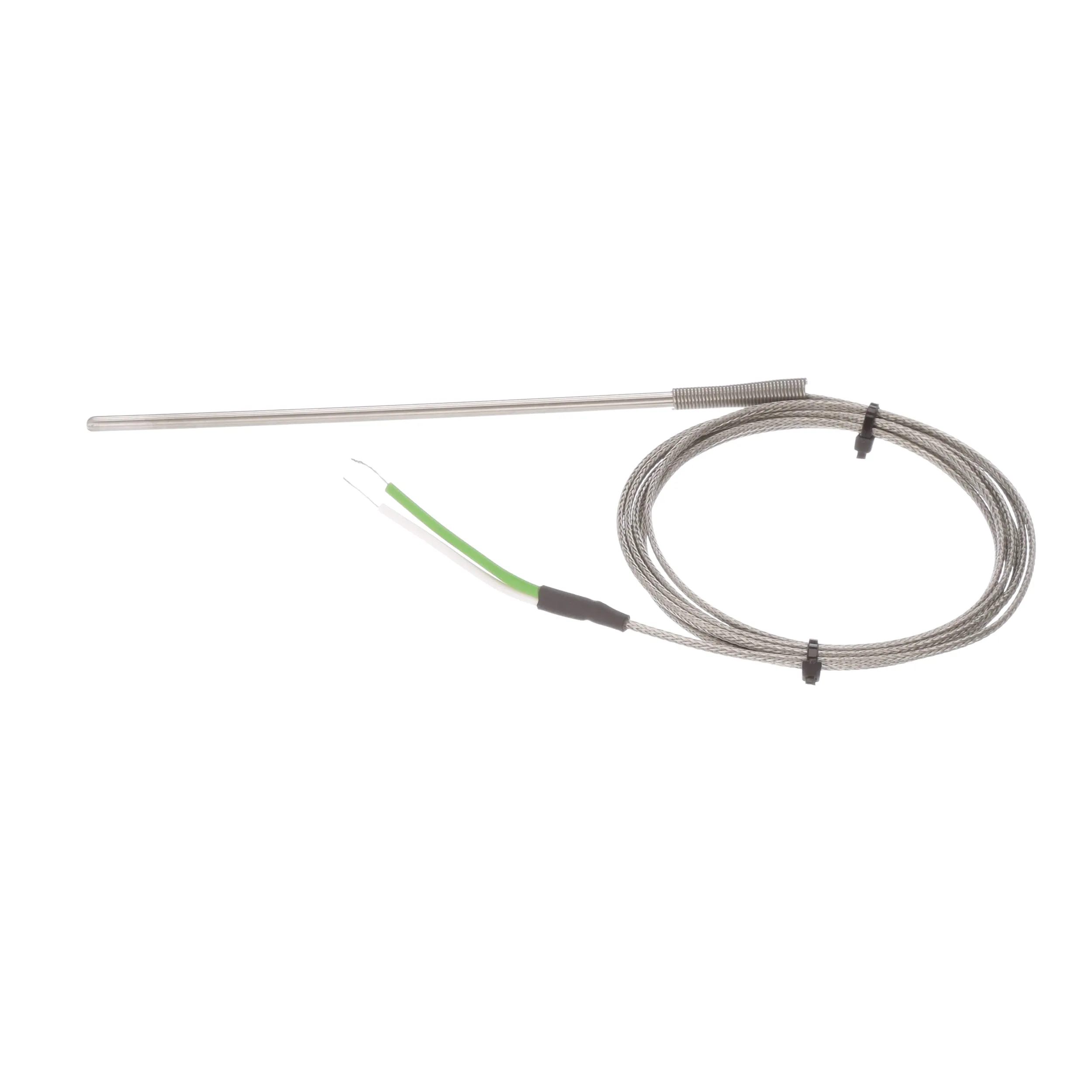

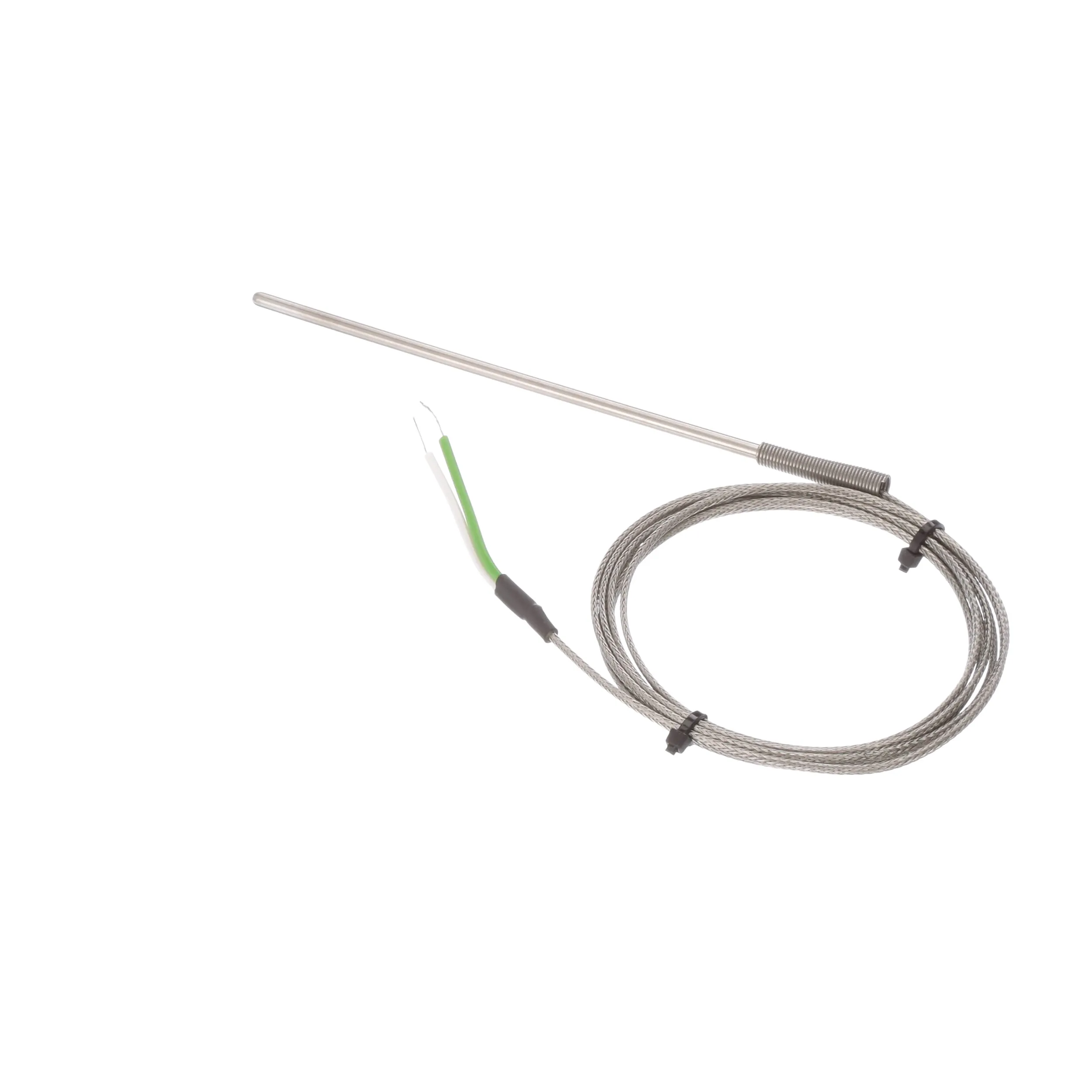

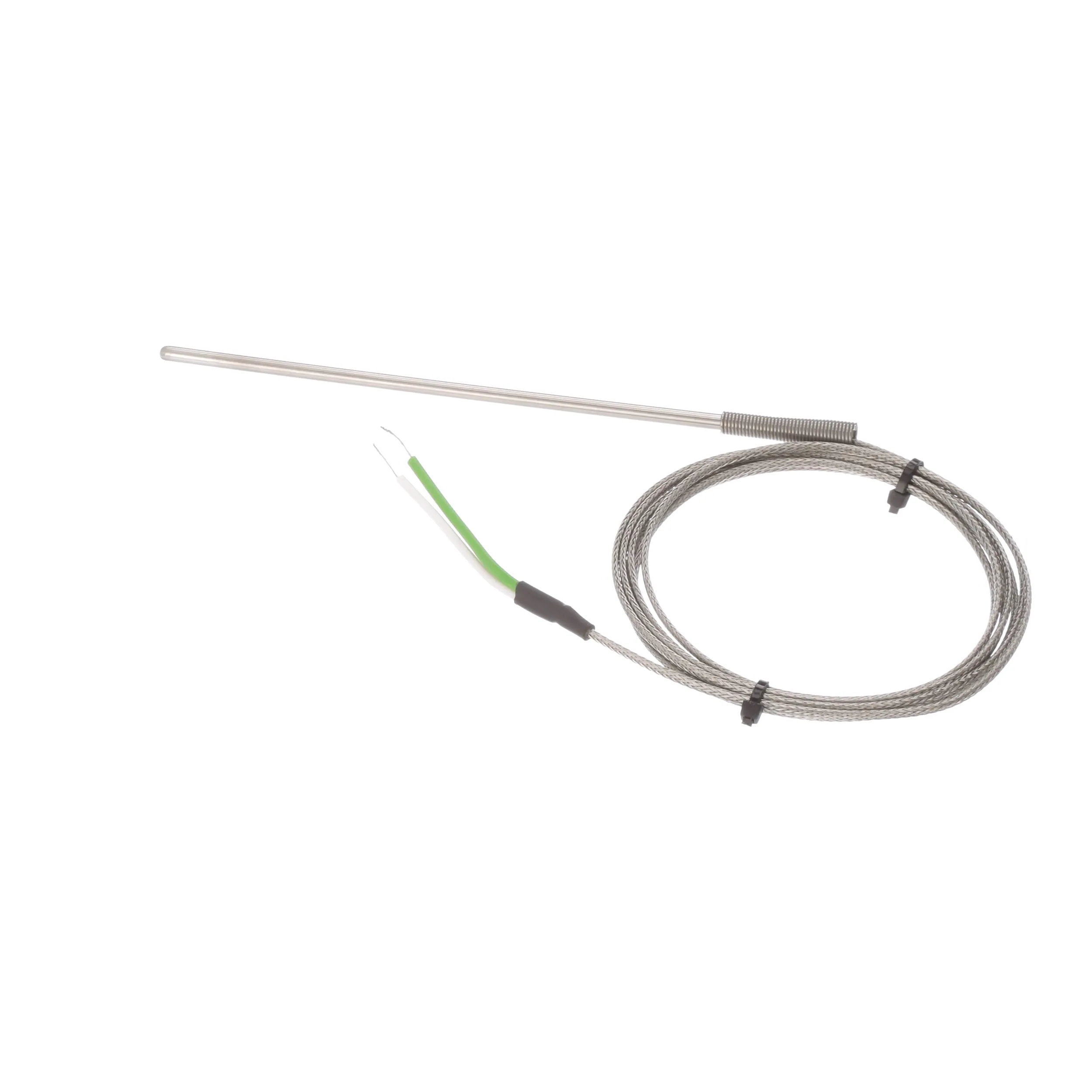

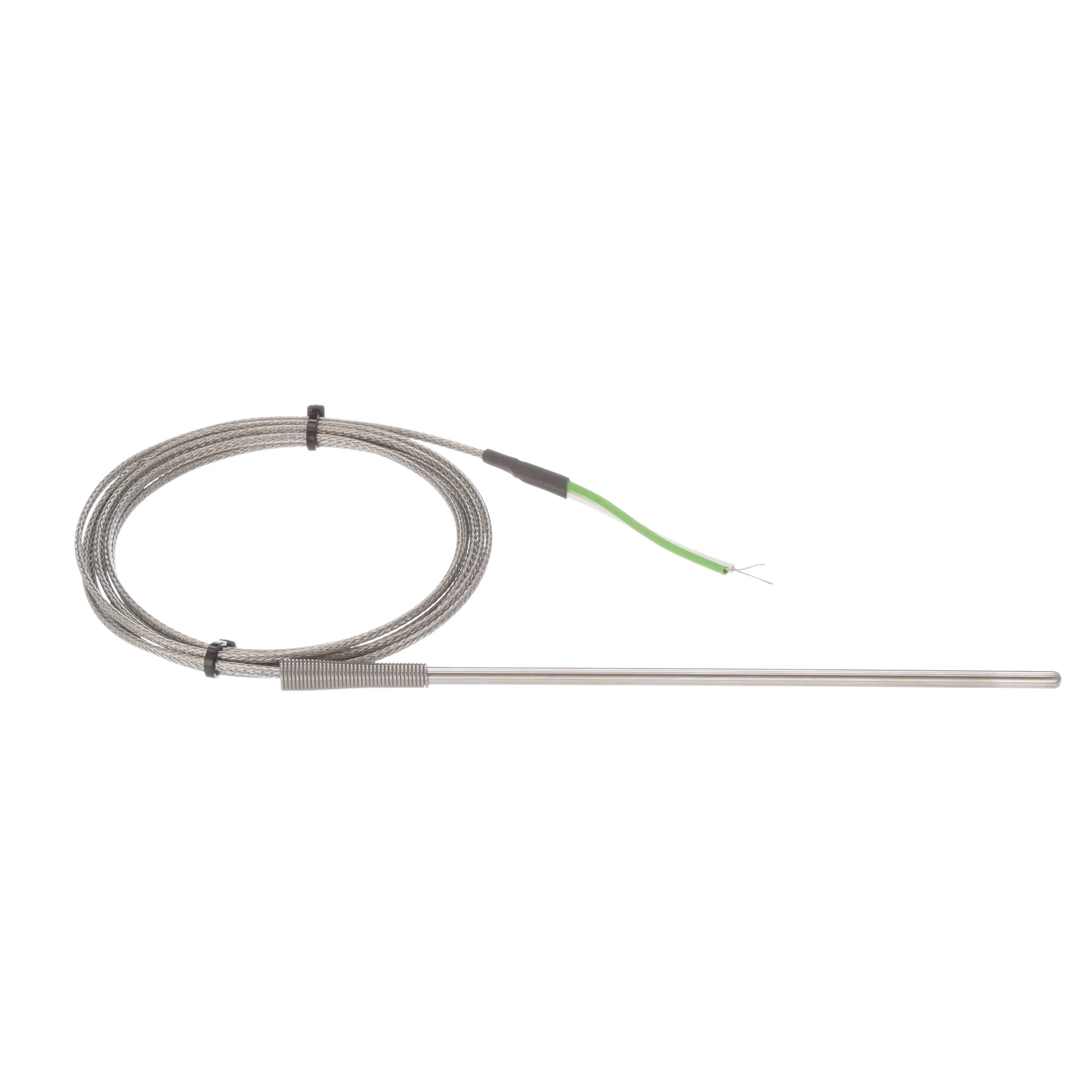

Heavy Duty Thermocouple, Type J & K
Stainless steel 316 probe with a silver soldered tip
4.5mm diameter x 150mm
Response time 1.25s (max)
2m of 7//0.2 glass Fiber insulated , stainless steel braided cable
Grounded measuring junction
Temperature range: -60 → 350 °C
